Cone crusher
This series of cone crusher is used for crushing ores and rocks, and the advantages are: reliable structure, high efficiency, easy adjustment and economy. There are spring cone crusher and Symons cone crusher.
TEL: +86-371-67833171 Email: sell@hxjq.com

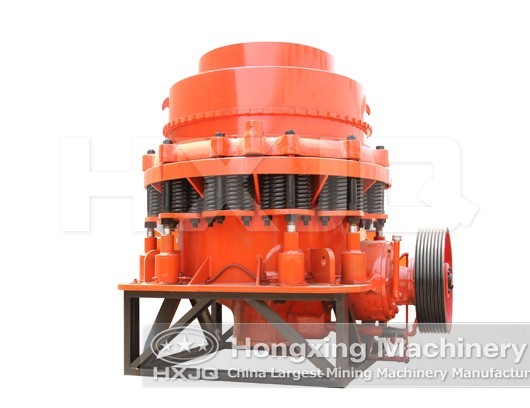

Cone crusher

This series of cone crusher is used for crushing ores and rocks, and the advantages are: reliable structure, high efficiency, easy adjustment and economy. There are spring cone crusher and Symons cone crusher. The spring system is the overload protection device, which makes foreign material go through the machine without bringing any hurt to it. The sealing modes are oil and water, which segregate the stone powder and lubricating system. The crushing chamber is decided by the purpose of ore, the standard model is suitable for medium crushing; the medium model is suitable for fine crushing and the short head model is suitable for fine crushing.

Symons cone crusher structure

Cone crusher consists of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.

Benefits and advantages of Cone crusher

1. Higher capacity and less wear costs.

2. Wide range of application suitability.

3. Easy to maintain, reduce the downtime and maintenance costs.

4. Stable running performance and easy operation.

5. Stable bevel wheel transmission device.

6. Balanced runout rotation ensures best capacity.

7. Proper operation, continuously load until the machine shuts down scheduled.

Working principle of Cone crusher

When the Cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

One famous Cone crusher manufacturer – Henan Hongxing Mining Machinery

According to demand on rock cone crushers of customers, it is developed based on laminated crushing principle and conceptual design of “more crushing and less grinding”; thus this new type of cone crusher – Hydraulic cone crusher is integrated with high wobble frequency, optimal cavity shape and reasonable stroke. This series of efficient cone crusher has more reasonable and perfect structure and more advanced technology. As the professional mining machinery manufacturer, Henan Hongxing’s Cone crushers are used and welcomed in China cone crusher market and even worldwide.
