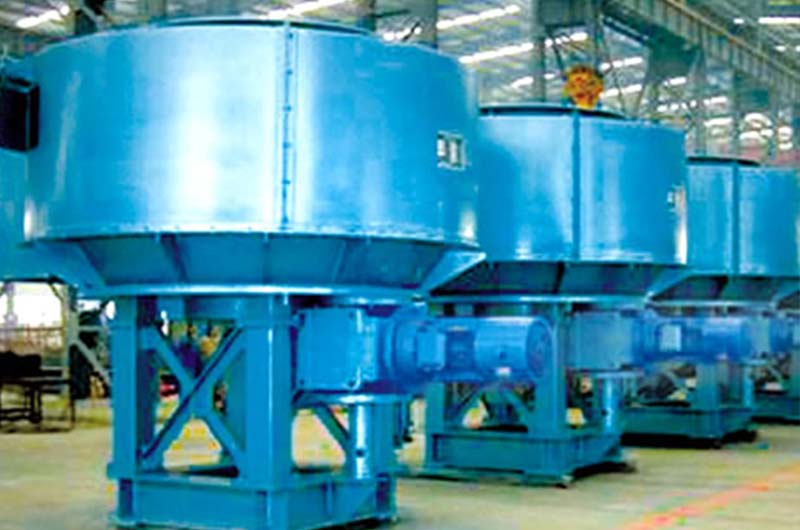

Disk Feeder

Disk Feeder
The Disk feeder is feeding equipment suitable for feeding the ore, coal, cement, and limestone.
Email us: sell@hxjq.com

The Handling Materials and Description of Disk Feeder:

Disk Feeder is a cubage measuring feeding equipment; it supplies materials to the next procedure evenly and continuously; at the same time, it can bear relatively higher pressure. It is a fine powdery material feeder suitable for non-cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue and clunch. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.

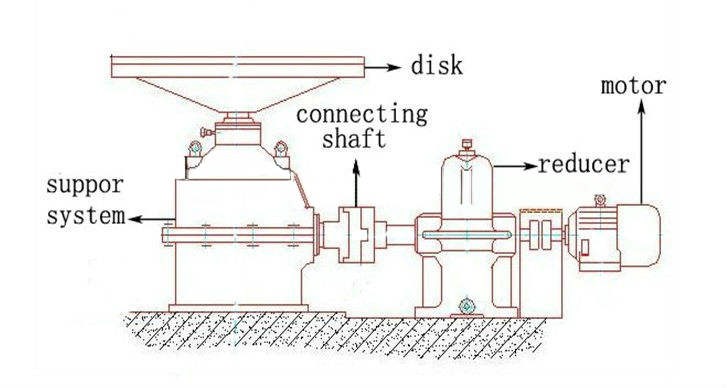

disk_feeder

The Advantages and Benefits of Disk Feeder:

1. Simple structure, easy-to-adjust and excellent in performance.

2. Disk Feeder is suitable for conveying of materials with granularity less than 50mm,

3. Easy-to-flow or hard-to-flow materials.

Technical Parameter

Specification KR1000 KR1500 KR2000 BR1000 BR1500 BR2000
Disk Diameter(mm) 1000 1500 2000 1000 1500 2000
Disk Rotate speed(r/min) 7.5 7.5 7.5 6.3 6.3 4.79
Max. feeding size(mm) <50 <50 <50 <50 <50 <50
Feeding capacity(m³/h) 14 25 100 13 30 80
Power(kw) 2.2 5.5 11 3 7.5 11
Weight(kg) 740 1280 1754 1400 2705 5234
