Processing capacity: 1-2200t/h

Feeding size: 125-250mm

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

Email us: sell@hxjq.com

The Main Types and Description of Jaw Crusher:

The Jaw crusher is used for Primary crushers and Secondary crushers for crushing all kinds of minerals and rocks with compressive strength less than 320 mpa.

There are two types of Jaw crusher: coarse jaw crusher and fine jaw crusher.We Henan Hongxing Machinery also manufacture Mobile jaw crusher, Single toggle jaw crusher and other Jaw breakers.

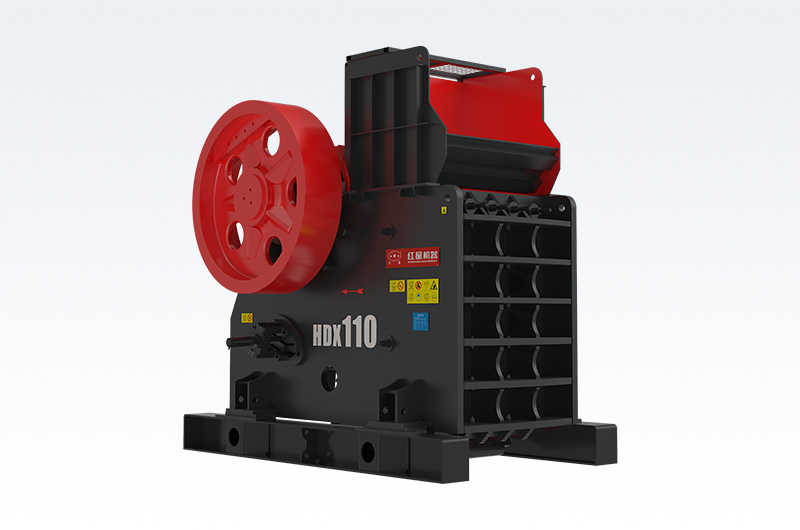

jaw_crusher

The Perfromance Characteristics of Jaw Crusher:

1. Crushing cavity is deep and there is no dead area, which improves feeding capacity and output;

2. High reduction ratio and uniform final product size;

3. Spacing piece type discharge-hole adjustment device is reliable and convenient;

4. Reliable and safe lubrication system, convenient replacement of parts and small work load of maintenance;

5. Simple structure, operational reliability and low operation cost.

Technical Parameter

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
