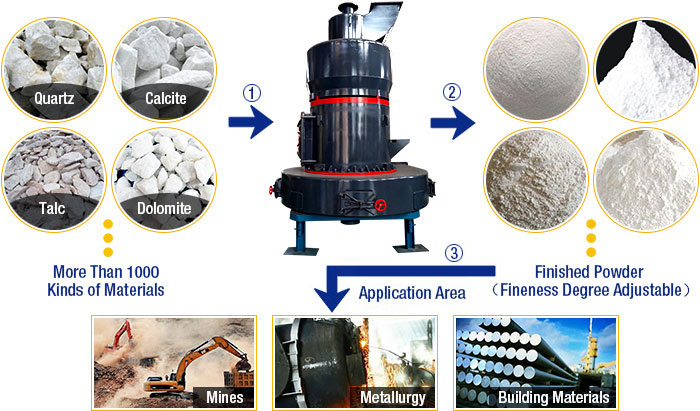

The Handling Materials and Application of Micro Powder Mill:

Micro powder mill is the key device of grinding for crushed materials, which is widely used for ore dressing and glass ceramics industries such as cement, silicate product, modern building materials, refractory, chemical fertilizer, ferrous metal, nonferrous metals.

The Advantages and Benefits of Micro Powder Mill:

Larger application range compared with pneumatic mill.
800-1200Kg of pressure enhancement by the high pressure spring compared with other mills.
Energy saving, only one third of energy consumption compared with pneumatic mill
Small in investment and high in profit. Only one eighth of price compared with pneumatic mill.

The Structural characteristics of Micro Powder Mill:

Micro-powder mill is mainly formed by mill body, blower fan, ultra-fine analyzer, finished product cyclone container, bag de-duster and air pipe; the elevator, storage bin, electric control cabinet, powder feeder and crusher are optional for the demands of customers. In the grinding chamber of the high pressure Raymond mill, the roll assembly is hanged on the roll supporter through the cross arm bearing; the roll supporter connects with the main shaft and blades; high pressure springs press the rolls tightly to the chamber; when the main motor starts, the blades and rolls rotate together; the analyzer is driven by transmission device and the speed of analyzer determines the fineness of materials.

What can you get?

Latest Price List/Free Customized Solution/Maintenance & Installation Guide

Free customized solutions
Customize different models according to your needs（Small, medium, and large machine）.
Factory direct sales
We have three production bases, guarantee 100% factory price of all products, and support export to all over the world.
24-hour online service
We have professional customer service staff, ready to answer your questions about our products.

Technical Parameter

Parameter Model	Micropowder93	Micropowder92	Micropowder87	Micropowder76	Micropowder66
Feeding size（mm）	≤25	≤25	≤20	≤20	≤15
Size of finished product（mm）	0.125-0.010	0.125-0.033	0.125-0.010	0.125-0.033	0.125-0.010
Shift output of different material fineness（t)	0.8-12	0.6-10	0.4-8	0.3-6	0.2-4
Rotate speed of pulverizing ring（r/min）	140	148	160	170	180
Diameter of pulverizing ring（mm）	1006	973	907.5	850	725
Diameter of pulverizing roller（mm）	300	300	270	250	210
Height of pulverizing roller（mm）	160	160	150	150	150
Main Motor(kw)	Y225M-8-30	Y225M-8-22	Y225M-8-22	Y225S-8-18.5	Y225M-8-15
Fan Motor	Y180M-2-22	Y180L-4-22	Y160L-4-18.5	Y160L-4-15	Y160L-4-11
Analyzer Motor	YCT180M-4A-4	YCT180M-4A-4	YCT180M-4A-4	YCT160-4B-3	YCT160-4B-3

Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
