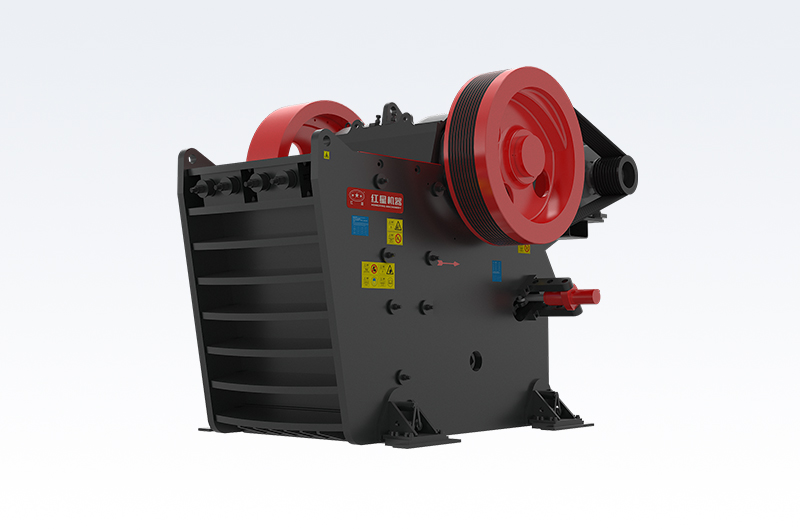

PEY Series Hydraulic Jaw Crusher

Feeding size: <340mm

Production capacity: 30-220t/h

Application area: metal and non-metal, building construction, sandstone, cement, metallurgy and so on.

Email us: sell@hxjq.com

PEY series hydraulic jaw crusher is one type tilting crusher with overload protection function.

The load of machine will soar when crushing some unbroken materials, and then the hydraulic protection device can decrease the load automatically in order to avoid the sudden load greatly impacting the body. This machine can safely be used in the crushing projects of those foreign materials with extreme hardness.

jaw_crusher

The Performance Characteristics of PEY Series Hydraulic Jaw Crusher:

1. Movable jaw body 2. Fixed tooth plate 3. Below the shield
4. Frame body 5. Fixed tooth plate compacts 6. Top guard
7. Side fender bolts 8. Events tooth plate 9. Movable jaw plate
10. Dust collector 11. Hydraulic soft Road 12. Adjustment mats
13. Small hydraulic cylinders 14. Spring rod section 15. Spring
16. Hydraulic cylinders 17. Wear Plates 18. Ski brackets seat
19. After the bracket pad 20. Spring rod 21. Brackets
22. Front bracket pad

The Working principle of PEY Series Hydrulic Jaw Crusher:

Those materials being crushed will enter into the crushing chamber( made up of fixed tooth plate, movable tooth plate and side linings) from the upper, and discharged from the outlet of crushing chamber(discharging port) after being crushed by movable jaw plate. The activity of movable jaw plate is generated by the eccentric shaft rotating boosted by transmission part.
Hydraulic system is the overload protection device of the machine, which can reduce the loading pressure of the body in order to realize the purpose of protecting the body. The established sufficient hydraulic piston of hydraulic system can provide a stable support brackets in the normal crushing process. The brackets can transport the peak load to the oil system by piston when the jaw plate meets some unbroken materials, which will make the oil pressure reach the set value or more, and then the pressure of system will immediately signaled.

To open the cylinder path leading to the tank in order to reduce the pressure of oil cylinder, and the movable jaw will enlarge the discharging port under the power of weight and spring tension in order to discharge the unbroken materials, and this process can be named "over iron". To cut off the path between fuel tank and tank after solving the above problem, and to open the oil circuit of oil cylinder can make the machine operating again by recovering the prior discharging size.

This machine is made up of three main parts: pendulum jaw mainframe, hydraulic protection device and controlling cabinet.

Technical Parameter

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
