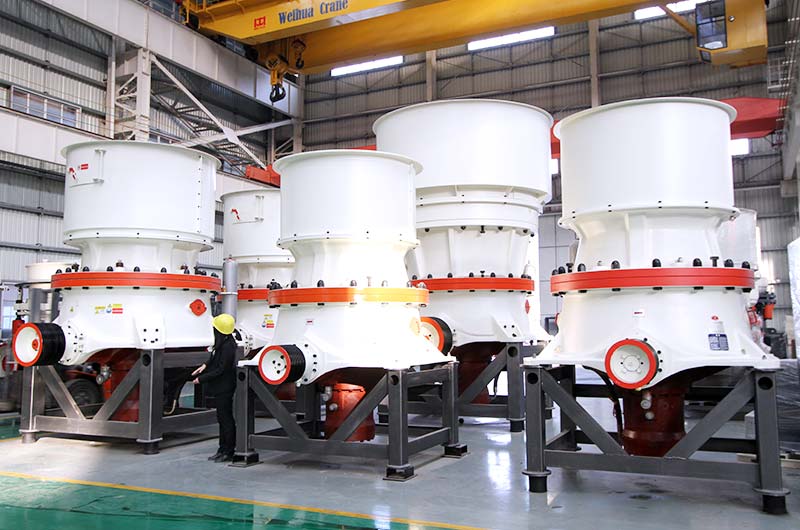

Product Introduction
Single-cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness construction, water and electricity, transportation, chemistry, and building material industry.
Single Cylinder Cone Crusher Features:
High Efficiency: The hydraulic cone crusher has support devices at the upper end and the lower end of the main shaft, which can withstand large crushing force and stroke so that the crushing efficiency is high.
Large Production Capacity: The hydraulic cone crusher combines with the crushing stroke, the crushing speed, and the shape of the crushing chamber to increase productivity from 35% to 60%.
High-Quality End Products: The hydraulic cone crusher adopts a unique crushing chamber and laminating crushing principle to produce a crushing effect between the particles so that the cubic particles in the final product account for a higher proportion and have more uniform particle size.
What can you get?
Latest Price List/Free Customized Solution/Maintenance & Installation Guide
-
Free customized solutions
Customize different models according to your needs（Small, medium, and large machine）.
-
Factory direct sales
We have three production bases, guarantee 100% factory price of all products, and support export to
all over the world.
-
24-hour online service
We have professional customer service staff, ready to answer your questions about our products.
Technical Parameter
SC-S series of single cylinder hydraulic cone crusher parameters:
| Model |
Cavities |
Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power （kw） |
Capacity（t/h） |
| SC100S |
C1 |
250 |
200 |
22 |
90 |
85-170 |
| C2 |
200 |
160 |
19 |
70-130 |
| SC160S |
C1 |
360 |
290 |
25 |
160 |
125-345 |
| C2 |
300 |
240 |
22 |
108-305 |
| SC250S |
C1 |
450 |
360 |
35 |
250 |
267-605 |
| C2 |
400 |
320 |
29 |
225-515 |
| SC315S |
C1 |
560 |
450 |
41 |
315 |
349-1050 |
| C2 |
500 |
400 |
38 |
318-892 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model |
Cavities |
Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power（kw） |
Capacity （t/h） |
| SC100 |
F1 |
150 |
120 |
10 |
90 |
45-135 |
| F2 |
90 |
70 |
10 |
43-118 |
| F3 |
38 |
30 |
4 |
25-40 |
| SC160 |
F1 |
200 |
160 |
13 |
160 |
69-215 |
| F2 |
115 |
90 |
10 |
57-184 |
| F3 |
35 |
25 |
|
70-90 |
| SC250 |
F1 |
215 |
170 |
16 |
250 |
116-396 |
| F2 |
110 |
90 |
13 |
117-194 |
| F3 |
38 |
30 |
|
100-125 |
| SC315 |
F1 |
275 |
220 |
16 |
315 |
177-662 |
| F2 |
175 |
140 |
16 |
162-552 |
| F3 |
85 |
70 |
13 |
175-325 |
| SC560 |
F1 |
300 |
240 |
22 |
560 |
448-1512 |
| F2 |
195 |
155 |
19 |
380-1373 |
| F3 |
90 |
70 |
13 |
357-912 |
| SC750 |
F1 |
370 |
295 |
25 |
750 |
394-2181 |
| F2 |
300 |
240 |
19 |
342-2020 |
| F3 |
230 |
185 |
16 |
267-1814 |
| F4 |
120 |
95 |
13 |
248-1165 |
| F5 |
85 |
70 |
10 |
185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
