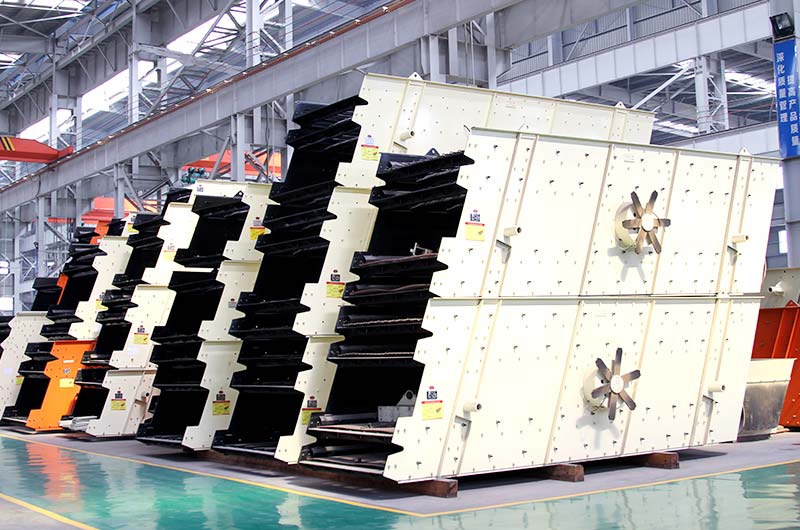

Vibrating Screen

Processing capacity: 8-800m³/h

Vibrating power: 800-970r/min

Max. feeding size: 400mm

Email us: sell@hxjq.com

The Main Types and Application of Vibrating Screen:

Vibrating screen which can divided into two types including circular vibrating screen and linear vibrating screen is vibrated in the circling motion.

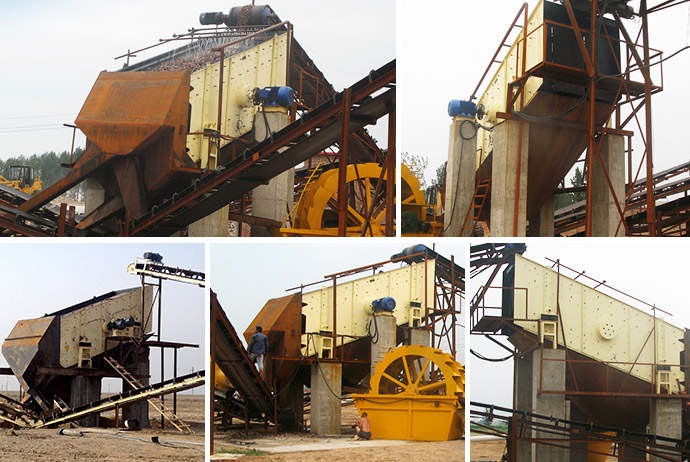

The screen line of material is long and the screening specification is various. Every screen specification is clear. So it is widely used in mining, construction material, transportation, energy and chemical industry for classification.

vibrating_screen

The Performance Characteristics of Vibrating Screen:

The circular vibrating screen's movement locus is a circumference. The circular vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and the screen specifications are more. It is designed especially for screening the raw rock in stone factory. The circular vibrating screen can also used for production in mine, construction, electricity, chemical industry. The screening machine has the features of reliable structure, strong exciting force, high screen efficient, low vibrating noise, simple maintenance and safe operation.

Technical Parameter

Model Sieve
layer
Sieve
area
(㎡)
Mesh
size
(mm)
Max.
feeding
size
(mm)
Processing
 capacity
(m³/h)
Vibrating
Frequency
(r/min)
Double
amplitude
(mm)
Motor
power
(kw)
Sieve
obliquity
(°)
Sieve
specification
(mm)
Total
weight
(kg)
Dimensions
(L×W×H)
(mm)
2YK1225 2 6 4-50 400 8-60 800-970 8 5.5 20 1200×2500 3500 2930×1860×870
3YK1225 3 9 4-50 400 10-70 800-970 8 5.5 20 1200×2500 3850 3070×1860×1210
2YK1230 2 7.2 4-50 400 12-78 800-970 8 7.5 20 1200×3000 4200 3430×1860×870
3YK1230 3 10.8 4-50 400 13-80 800-970 8 7.5 20 1200×3700 4600 3570×1860×1210
2YK1237 2 8.88 4-50 400 15-86 800-970 8 7.5 20 1200×3700 4600 4050×1860×870
3YK1237 3 13.32 4-50 400 16-90 800-970 8 7.5 20 1500×3500 5200 4270×1860×1210
2YK1535 2 10.5 5-50 400 20-125 800-970 8 11 20 1500×3500 5890 4120×2210×1230
3YK1535 3 15.75 5-50 400 21-125 800-970 8 11 20 1500×3500 6700 4360×2210×1610
2YK1545 2 13.5 5-50 400 22-150 800-970 8 15 20 1500×4500 6330 5120×2210×1230
3YK1545 3 20.25 5-50 400 22-150 800-970 8 15 20 1500×4500 6800 5360×2210×1610
4YK1545 4 27 5-50 400 22-155 800-970 8 18.5 20 1500×4500 7800 5930×2210×2060
2YK1548 2 14.4 5-50 400 22.5-162 800-970 8 15 20 1500×4800 6980 5420×2210×1230
3YK1548 3 21.6 5-50 400 22.5-162 800-970 11 15 20 1500×4800 7700 5660×2210×1610
4YK1548 4 28.8 5-50 400 22.5-162 800-970 8 18.5 20 1500×4800 8700 6230×2210×2060
2YK1848 2 17.28 5-80 400 25-206 750 8 15 20 1800×4800 9080 5420×2550×1420
3YK1848 3 25.92 5-80 400 32-276 750 8 18.5 20 1800×4800 9600 5660×2550×1780
4YK1848 4 34.56 5-80 400 32-285 750 8 22 20 1800×4800 11100 6290×2550×2160
2YK1854 2 19.44 5-80 400 32-312 800-970 8 18.5 20 1800×5400 10150 5960×2550×1420
3YK1854 3 29.16 5-80 400 32-312 800-970 8 22 20 1800×5400 10840 6260×2550×1780
4YK1854 4 38.88 5-80 400 32-336 800-970 8 30 20 1800×5400 12840 6830×2550×2160
2YK2160 2 25.2 5-100 400 50-475 970 8 30 20 2100×2600 11780 6720×2840×1530
3YK2160 3 37.8 5-100 400 50-475 970 8 30 20 2100×2600 12800 7030×2840×1910
4YK2160 4 50.4 5-100 400 50-497 970 8 37 20 2100×2600 14800 7300×2840×2380
2YK2460 2 28.8 5-100 400 65-550 970 8 37 20 2400×6000 15600 7020×3140×1530
3YK2460 3 43.2 5-100 400 70-620 970 8 37 20 2400×6000 17600 7300×3140×1910
4YK2460 4 57.6 5-100 400 80-680 970 8 45 20 2400×6000 19600 7600×3140×2380
2YK2870 2 39.2 5-100 400 120-680 750 8 22×2 20 2800×7000 21200 7600×4320×1620
3YK2870 3 58.8 5-100 400 180-720 750 8 22×2 20 2800×7000 22400 7800×4320×2120
2YK3072 2 43.2 5-100 400 200-700 750 8 22×2 20 3000×7200 23600 7800×4520×1750
3YK3072 3 64.8 5-100 400 230-800 750 8 22×2 20 3000×7200 25500 8000×4520×2300
