Cylinder Washing Machine
Welcome to the factory to visit the machines Good equipment

Cylinder Washing Machine

The drum ore washer is generally used for large ore, which is difficult to wash. In the mining process of non-ferrous metal, the raw materials need to be cleaned to avoid clogging the crushing and screening equipment in the raw materials of slime mineral.

Introduction

The cylinder washing machine is generally used for large ore, which is difficult to wash. In the mining process of non-ferrous metal, the raw materials need to be cleaned to avoid clogging the crushing and screening equipment in the raw materials of slime mineral. The drum ore washer can effectively improve the quality of mines, it has prominent economic benefits to the reality of many lean mines in China.

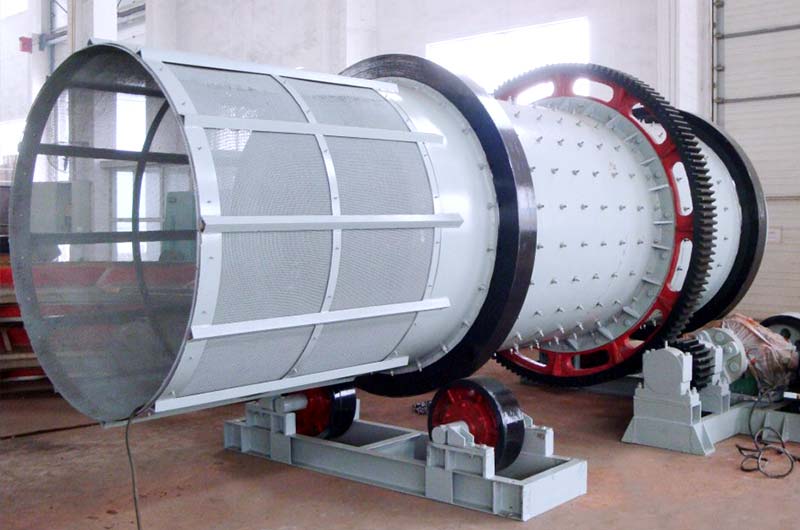

Drum Ore Washer

Advantages

It is widely used to clean ore with high mud content, and all kinds of large ores, which is hard to wash. The washing efficiency is up to 99%.

Low rotation power consumption and cost-saving.

Simple structure, stable performance, and high yield.

Low malfunction rate, the long service life of wearing parts.

Working Principle


The cylinder washing machine is supported by four tugs, the cylinder rotates at a low speed with the motor driving the gears. The mud containing ore enters the rotating drum and is continuously lifted and stirred by a stirring device installed inside the cylinder. The mud containing ore is continuously washed by the high-pressure water column during multiple cycles. The clean ore will be discharged after dehydration by decontamination device.

What can you get?

Latest Price List/Free Customized Solution/Maintenance & Installation Guide

Technical Parameter

Model Capacity
(t/h)
Motor Power
(kw)
Φ1.2×4.5 10-30 22
Φ1.5×5 15-45 30
Φ1.8×5.5 25-75 45
Φ2×6 30-100 75
Φ2.4×6.5 50-160 110
Φ2.6×7 45-210 132
Φ3×7.5 90-300 185

Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
