Processing Water Volume: 30-650m³/h
Separator Spec: 250-900mm
Sand Pump Power:11-55Kw

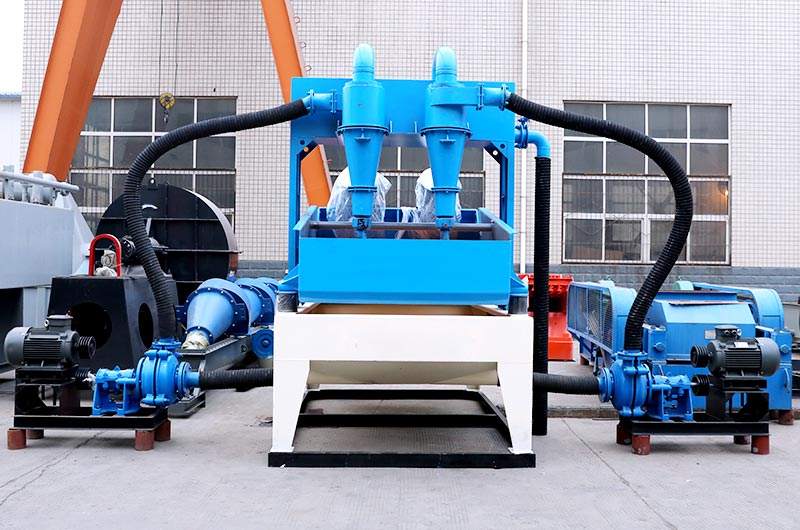

The fine sand recovery machine separates the slurry with the concentration≤40% into the hydrocyclone separator through the slurry pump, and the separated coarse fraction enters the dehydration flash sieve for dehydration recovery. Maximize the recovery of materials above 75cm, remove sludge and clay below 75cm, can be used with the sand washing machine on the existing production line, or can be used alone to improve resource utilization and maximize revenue.
Latest Price List/Free Customized Solution/Maintenance & Installation Guide
Customize different models according to your needs(Small, medium, and large machine).
We have three production bases, guarantee 100% factory price of all products, and support export to all over the world.
We have professional customer service staff, ready to answer your questions about our products.
Model | Sand Pump Power (kw) |
Sepatator Spec (mm) |
Dewatering Screen | Processing Water Volume (m3/h) |
|
Specifications (mm) |
Power (kw) |
||||
HX-250 | 11 | 250 | 800×2000 | 2×0.75 | 30-60 |
HX-300 | 15 | 300 | 800×2000 | 2×0.75 | 60-100 |
HX-350 | 18.5 | 350 | 1000×2000 | 2×1.5 | 70-130 |
HX-550 | 22 | 550 | 1200×3000 | 2×2.2 | 100-220 |
HX-650 | 30 | 650 | 1500×3000 | 2×3 | 120-272 |
HX-750 | 37 | 750 | 1500×3000 | 2×3 | 180-350 |
HX-750(Ⅱ) | 45 | 750 | 1800×3600 | 2×4 | 230-430 |
HX-900 | 55 | 900 | 1800×3600 | 2×4 | 450-650 |
Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
