HX Vibrating Screen

HX Vibrating Screen

Processing Capacity: 8-800m³/h

Screening Size: 4-100mm

Max.Feeding Size: 400mm

Email us: sell@hxjq.com

Introduction

The HX series vibrating screen is a new type of circular vibrating screen developed by FTM Machinery by taking customers'use and maintaining experience into account and upgrading the design of YA and YK series screens.for heavy-duty conditions.

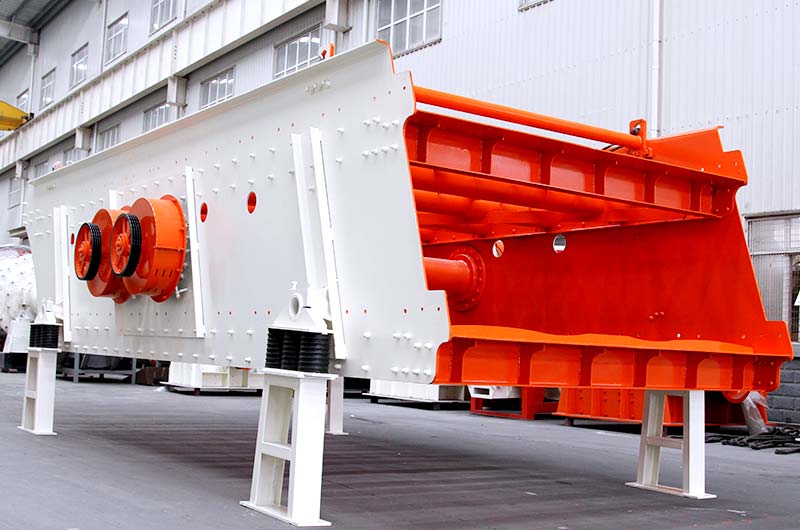

HX Vibrating Screen

Features

1.The screening angle of 18゚ improves the screening efficiency.

2.The exciter has a structure of an eccentric shaft plus an eccentric block, providing sufficient vibrating force.

3.It is a self-lubricating machine with thin oil and the oil can be changed every three to six months.

4.The key parts are installed with a protective layer of wear-resistant rubber to extend the service life of the screen.

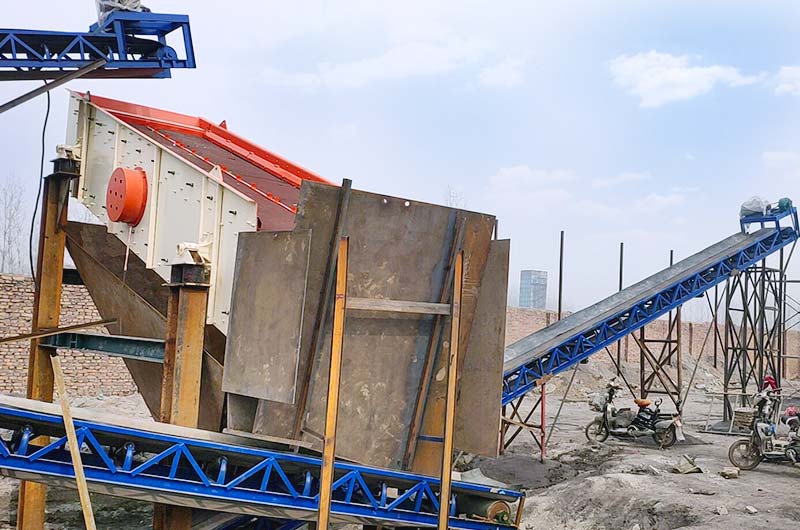

HX Vibrating Screen

Technical Parameter

Model Sieve Layer Sieve Obliquity
(°)
Motor Power
(kw)
Vibrating Frequency
(r/min)
Max.Feeding Size
(mm)
Production(t/h) Dimensions(mm)
(L×W×H)
2HX1545 2 18 15 780-900 200 60-500 5380×2295×1410
3HX1545 3 18 15 780-900 200 65-500 5575×2295×1990
4HX1545 4 18-20 18.5 780-900 200 65-500 5765×2295×1990
2HX1855 2 18 18.5 780-900 200 75-600 5680×2565×1450
3HX1855 3 18 22 780-900 200 75-600 5900×2565×2110
4HX1855 4 18-23 22 780-900 200 75-600 6030×2565×2500
2HX2165 2 18 30 780-900 200 85-700 7160×2990×1690
3HX2165 3 18 30 780-900 200 85-700 7380×2990×2365
4HX2165 4 18-23 37 780-900 200 85-700 7430×2990×2550
2HX2465 2 18 37 780-900 200 100-800 7160×3290×1690
3HX2465 3 18 37 780-900 200 100-800 7380×3290×2365
4HX2465 4 18-23 37 780-900 200 100-800 7430×3290×2500
2HX2765 2 18 37 780-900 200 120-900 7180×3570×1805
3HX2765 3 18 45 780-900 200 120-900 7390×3570×2445
4HX2765 4 18-23 45 780-900 200 120-900 7480×3570×2715
2HX3065 2 18 37 780-900 200 200-1200 7180×3870×1805
3HX3065 3 18 45 780-900 200 200-1200 7390×3870×2445
4HX3065 4 18-23 45 780-900 200 200-1200 7480×3870×2715
2HX3075 2 18 22×2 780-900 400 200-1300 8700×4055×1980
3HX3075 3 18 37×2 780-900 400 200-1300 8940×4120×2720
