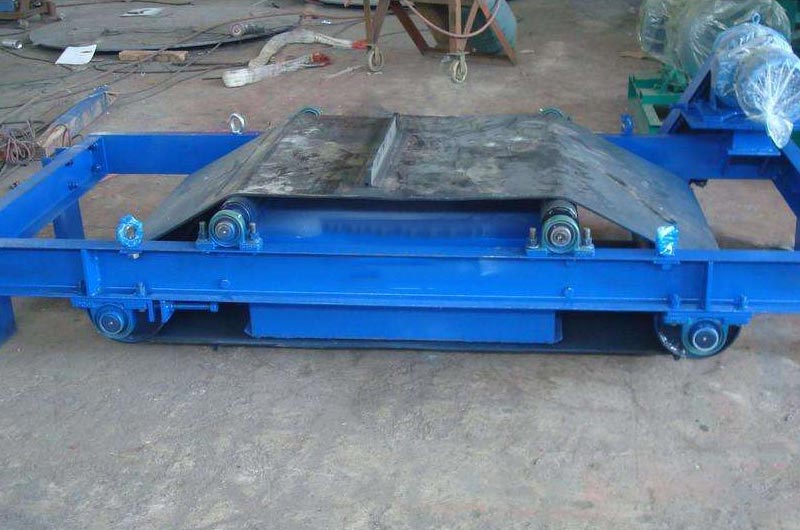

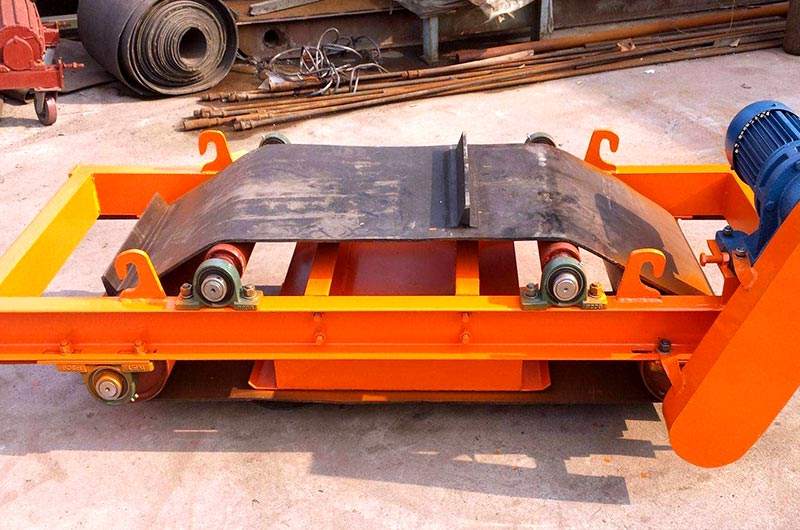

Permanent Magnet Self-Discharging Iron Remover
Welcome to the factory to visit the machines Good equipment

Permanent Magnet Self-Discharging Iron Remover

Magnetic Field Strength: ≥70mt

Belt Width: 500-2000mm

Belt Speed: ≤2.5m/s

Product Description

The Permanent Magnet Self-Discharging Iron Remover is used for automatically removing ferromagnetic substances from non-magnetic materials. It is usually used in places where there are many irons in the material, and can be used in the process of automatic control, and the automation of the production process can be seen.

Permanent Magnet Self-Discharging Iron Remover

The Permanent Magnet Self-Discharging Iron Remover is a high-performance permanent magnet core, composed of iron unloading chain cover, manual iron removal, and various types of conveyors are used. The internal magnetic circuit design uses a computer to simulate a double magnetic pole structure. When the ferromagnetic impurities accumulated at the bottom of the magnet accumulate to a certain extent, the manual manual handle drives the scraper to remove the waste.

Outstanding Advantages

1, The magnetic circuit adopts computer simulation design, perfect double magnetic pole structure, high magnetic field strength, large gradient and large suction force.

2, The high-performance NdFeB is used as the magnetic source, and the magnetic energy product is high, and it is not easy to demagnetize. The demagnetization is less than 5% in eight years.

3, The drum drum structure has automatic rectification function, fully sealed bearing seat, good sealing performance, and can adapt to various harsh environments.

4, The belt is automatically unloaded to ensure long-term trouble-free continuous operation.

5, The control part can be interlocked with the belt conveyor to realize local manual control and centralized control.

Permanent Magnet Self-Discharging Iron Remover

What can you get?

Latest Price List/Free Customized Solution/Maintenance & Installation Guide

Technical Parameter

Model Belt Width
(mm)
Related Hoisting
(h=mm)
Maginrials Field
(≥mt)
Material Thickness
(≤mm)
Motor Power
(kw)
Belt Speed
(≤m/s)
Working Hours Weight (kg) Dimension
(mm)
A B C D E
RCYD(C)-5 500 150 70 80 1.5 2.5 Continuity 750 1900 710 935 950 753
RCYD(C)-6 600 175 70 120 1.5 920 2050 710 1020 1050 753
RCYD(C)-6.5 650 200 70 150 1.5 1200 2050 728 1020 1200 888
RCYD(C)-8 800 250 70 200 2.2 1400 2250 750 1300 1350 1090
RCYD(C)-10 1000 300 70 250 3.0 2120 2650 889 1550 1450 1335
RCYD(C)-12 1200 350 70 300 4.0 3350 2860 1010 1720 1550 1515
RCYD(C)-14 1400 400 70 350 4.0 4450 3225 1050 1980 1800 1755
RCYD(C)-16 1600 450 70 400 5.5 6200 3350 1180 2160 1950 1850
RCYD(C)-18 1800 500 70 450 5.5 8100 3580 1210 2450 2200 2130
RCYD(C)-20 2000 550 70 500 7.5 9700 3800 1300 2700 2400 2410

Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
