Single Stage Crusher
Welcome to the factory to visit the machines Good equipment

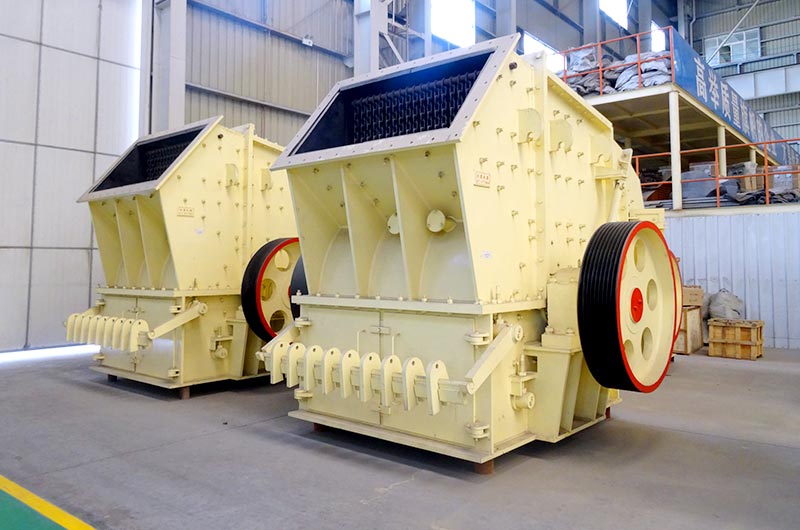

Single Stage Crusher

Processing capacity:100-420t/h

Feeding size:800-1250mm

Application fields: metallurgy, chemical, building materials, electricity, transportation and other departments.

Product Introduction

This series of single-stage crusher is a new generation of high-efficiency crusher manufactured through optimization and innovation combined with advanced German technology. The single-stage crusher can pulverize the large ore to an average particle size of 5 mm at a time. It is a replacement for traditional two- and three-stage crushers, which simplifies the process and saves capital and production costs.

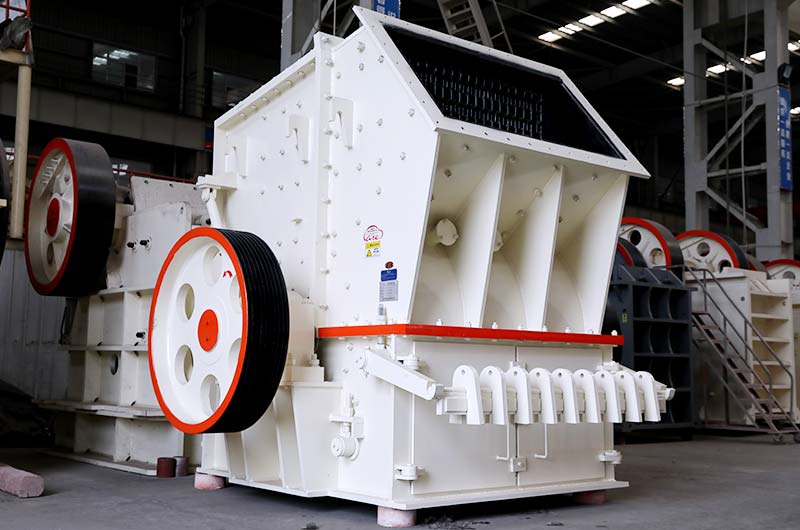

Single Stage Crusher

Single Stage Crusher Features:

Process Upgrade: The process is simplified, and the original secondary or tertiary crushing can be reduced to one part; the power is small, and the production cost is greatly reduced. Adjustable Particle Size, Large Crushing Ratio: The discharge particle size can be adjusted; the crushing ratio is large, and the feed size is large, up to 1.3-1.5m. Low Operating Costs and Affordable Prices: The single-stage crusher has low operating cost, small system support force, greatly reduced production cost, and greatly reduced crusher price.

Single Stage Crusher

Working Principle

The material enters the crushing chamber and is stacked on the special intermediate bracket in the machine. The hammerhead runs in the gap between the intermediate brackets, and the material is continuously crushed and dropped. The falling pieces are further struck by the high-speed running hammer. Finely crushed, and finally unloaded after the arc-shaped slabs are integrated.

What can you get?

Latest Price List/Free Customized Solution/Maintenance & Installation Guide

Technical Parameter

Model Type Rotor diameter Feeding size
(mm)
Product Size
(mm)
Capacity
(t/h)
Power
(kw)
DPC140 Single Rotor 1400 ≤800 <3-8 100-140 6P   160-220KW
DPC160 1600 ≤1000 150-240 4P   280-355KW
DPC200 2000 ≤1250 330-420 6P   500-630KW

Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
