Spiral Sand Washing and Recycling Machine
Welcome to the factory to visit the machines Good equipment

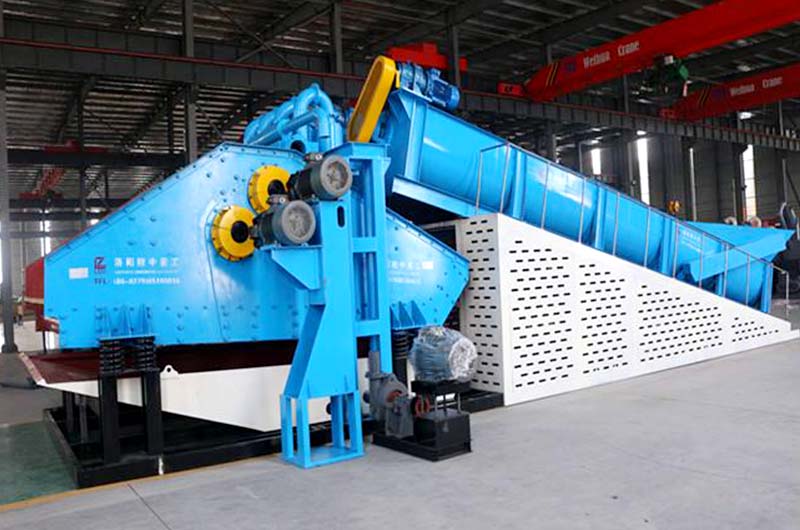

Spiral Sand Washing and Recycling Machine

Feeding size: ≤10mm

Sand Production: 20-240t/h

Screw Diameter:765-1115mm

Product Description

Spiral Sand Washing and Recycling Machine combines the technology of sand washing , fine sand recycling and dehydration. It has the future of small occupation area, clean final products, less fine sand lose, high capacity, long life and less maintenance cost etc, it is the new generation for the traditional sand washer.

Spiral Sand Washing and Recycling Machine

What can you get?

Latest Price List/Free Customized Solution/Maintenance & Installation Guide

Technical Parameter

Model Screw diameter
(mm)
the sink length
(mm)
screen plate size
(mm)
Feeding size
(mm)
Sand production
(t/h)
standard
segregator
specification
standard total power
(kw)
LX765-15-55 765 6500 1500x3000 ≤10 20-60 250x2 39
LX915-15-65 915 7650 1500x3000 ≤10 30-100 300x2 47
2LX915-24-100 915 7650 2400x4500 ≤10 60-200 250x4 81
LX1115-18-75 1115 8650 1800x4500 ≤10 40-120 350x2 60
2LX1115-30-120 1115 8650 3000x4800 ≤10 80-240 300x4 120

Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
