Suspension Permanent Magnet Iron Remover
Welcome to the factory to visit the machines Good equipment

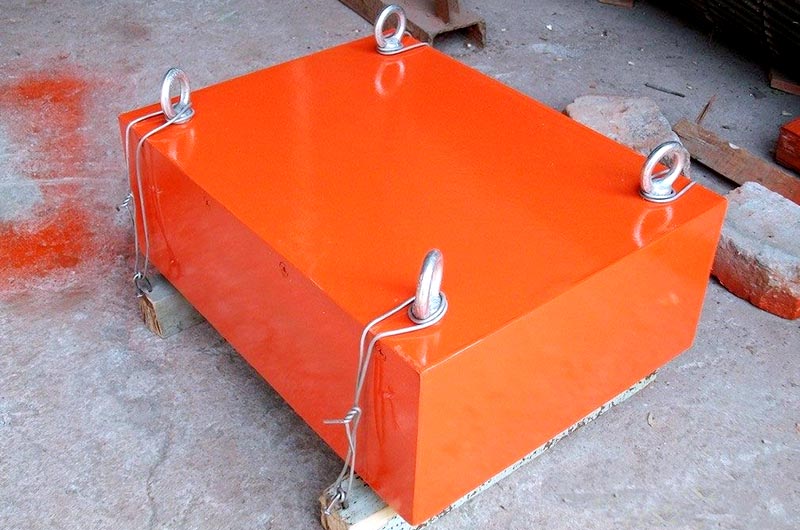

Suspension Permanent Magnet Iron Remover

Magnetic Field Strength: 63-70 mt

Weight: 115-2200 kg

Scope of Application: It is suitable for belt conveyor, vibrating conveyor, electromagnetic vibrating feeder, and iron removal in non-magnetic materials on the chute.

Product Description

Suspension Self-unloading Permanent Magnet Iron Remover is composed of high-performance permanent magnet core, iron-dissipating belt, geared motor, frame, roller, etc., and is used with various conveyors. The suspended self-unloading permanent magnet separator is used to automatically remove 0.1 to 35 kilograms of ferromagnetic material from non-magnetic materials. The internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine in a harsh environment without trouble.

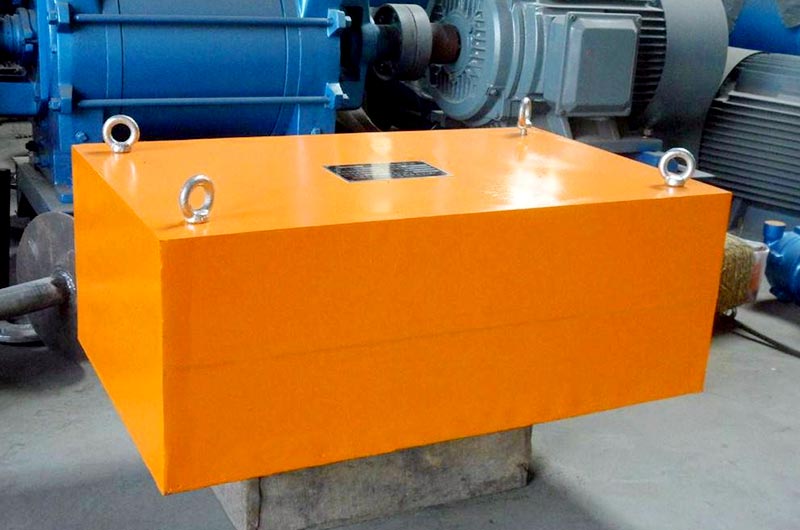

Suspension Permanent Magnet Iron Remover

Outstanding Advantages

1. The composite magnetic system is composed of a high-coercive force and a high-remanence permanent magnet NdFeB. The magnetic field is strong and the suction force is large.

2. Easy to install, easy to use, reliable and maintenance free.

3. All technical indicators are in line with JB/T8711-2006

Suspension Permanent Magnet Iron Remover

What can you get?

Latest Price List/Free Customized Solution/Maintenance & Installation Guide

Technical Parameter

Model Belt Width
(mm)
Ralted Hoisting
Height
(h=mm)
Material Field
(≤mm)
Magnetic Field
(≥mt)
Belt Speed
(≤m/s)
Weight(kg) Dimension
(mm)
L D H
RCYB-4 400 130 80 63 2.5 115 400 300 210
RCYB-5 500 150 100 63 180 500 400 230
RCYB-6 600/650 180 130 63 300 600 500 250
RCYB-6.5 650 200 150 65 450 650 600 250
RCYB-8 800 250 200 70 580 800 700 250
RCYB-10 1000 300 250 70 880 1000 800 270
RCYB-12 1200 350 300 70 1100 1200 1000 270
RCYB-14 1400 400 350 70 1700 1400 1300 270
RCYB-16 1600 450 400 70 2200 1600 1500 270

Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
