Product Description

When flotation machine is working, with the rotation of the impeller, groove pulp from all around and via the bottom of groove is inhaled into between the impeller blades by the impeller bottom, at the same time, by the blower for the low pressure air by hollow shaft and impeller air distributor also enter it. After pulp mixing air fully, it is pusher from the upper part of the impeller to the oblique, and the stator stabilizes the flow and directs it into the whole trough. Bubbles rise to the foam stability region, after concentration process, the foam from the overflow weir gravity overflow then into the bubble bath, and part of the pulp flow to the lower part of impeller, then through the impeller stirring, to mix mineralization bubble formation, the rest of the pulp flow to the next trough, until eventually residue.

Scope of application

Advantage

Low Operating Cost: Compared with conventional mechanical stirring type flotation machine, it can save 1/3--1/2 of electricity.
The accuracy of the separation is high, the cleans ash is low:the cleaned coal ash can be reduced by 1-2%, compared with conventional mechanical stirring type flotation machine.
Vulnerable parts are durable:the impeller is always active in the machine, which plays a role in removing material deposit and debris, reducing the phenomenon of damaging parts due to clutter; the impeller of the agitator is made of grinding rubber, which enhances the wear resistance.

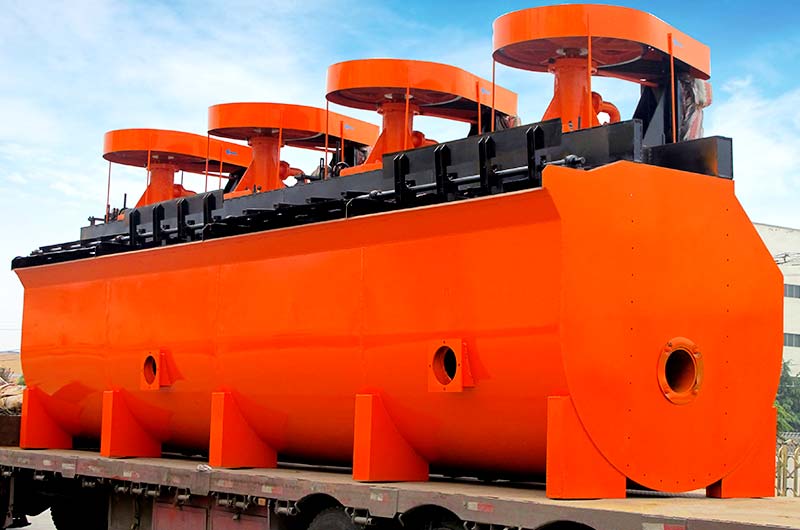

XCF Flotation Machine

What can you get?

Latest Price List/Free Customized Solution/Maintenance & Installation Guide

Free customized solutions
Customize different models according to your needs（Small, medium, and large machine）.
Factory direct sales
We have three production bases, guarantee 100% factory price of all products, and support export to all over the world.
24-hour online service
We have professional customer service staff, ready to answer your questions about our products.

Technical Parameter

Model		XCF-1	XCF-2	XCF-3	XCF-4	XCF-8	XCF-16	XCF-24	XCF-38
Dimensions	Length（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Width（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Height（mm）	1100	1250	1400	1500	1950	2400	10819	3400
Single Effective Weight（t）		1.2	1.7	2.3	2.7	3.9	6.6	8.0	16.8
Effective cubage（m³）		1	2	3	4	8	16	24	38
Production Capacity calculated by slurry volume(m³/min)		0.2—1	0.4—2	0.6—3	1.2—4	3—8	4—16	4—24	10—38
Main shaft motor	Model	Y132M2-6	Y160M-6	Y160L-6	Y180L-6	Y200L2-6	Y280S-8	Y280S-8	Y280S-6
Main shaft motor	Power（kw）	5.5	7.5	11	15	22	37	37	45
Impeller	Rotate speed(r/min)	960	970	970	970	970	740	740	980
	Diameter（mm）	400	460	540	620	720	860	950	—
	Height（mm）	155	175	207	247	321	349	—	—
	Rotate speed(r/min)	358	331	266	215	185	160	153	—
	Circular velocity(m/s)	7.5	7.5	7.5	7	6.97	7.6	7.6	7.4
loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power（kw）	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotate speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
loam board	Rotate speed(r/min)	18	18	16	16	16	16	16	16
loam board	Diameter（mm）	500	500	580	600	600	700	700	700
Wind pressure of fan （kpa）		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.3
Max. air injection amount(m³/㎡·min)		2	2	2	2	2	2	2	2

Note:processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
